SP-150 Inline Micropositioner

The SP-150 is a small footprint, narrow profile micropositioner optimized for the most demanding sub-micron failure analysis applications.

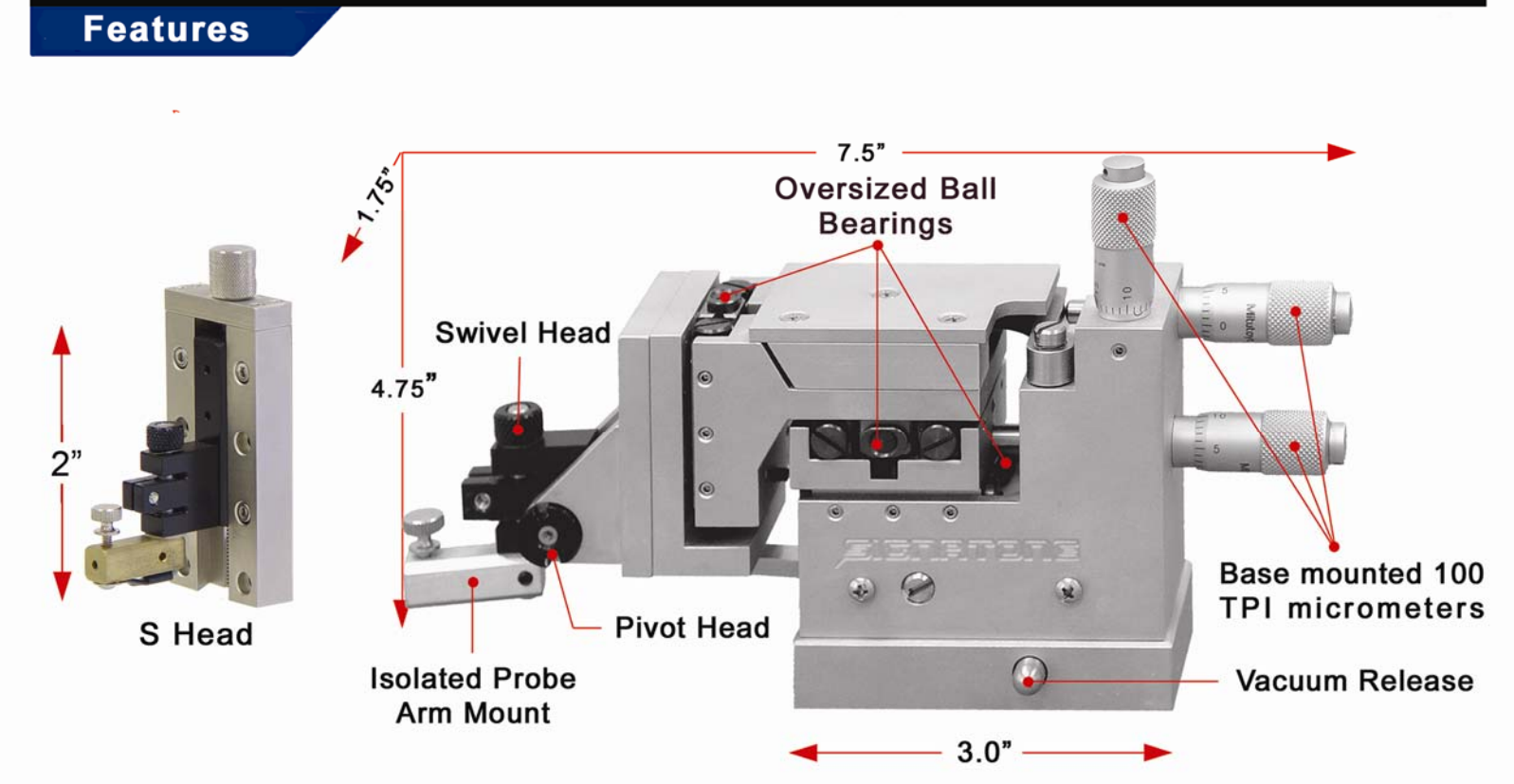

Utilizing oversized ball bearings on all axes and base-mounted micrometers to minimize hand-coupled vibration,The SP-150 Inline Micropositioner is Signatone's most stable and precise micropositioner for submicron probing. All three axes are mechanical isolated from the movement knobs, providing zero user induced vibration. The X and Y knobs are both located a

PRODUCT OVERVIEW

High-resolution In-line Micropositioner

The SP-150 is a small footprint, narrow profile micropositioner optimized for the most demanding sub-micron failure analysis applications.

Utilizing oversized ball bearings on all axes and base-mounted micrometers to minimize hand-coupled vibration,

The SP-150 Inline Micropositioner is Signatone's most stable and precise micropositioner for submicron probing.

All three axes are mechanical isolated from the movement knobs, providing zero user induced vibration.

The X and Y knobs are both located at the rear of the micropositioner so that positioners can be positioned closely together without interference from a knob located on the side.

The SP-150 is designed for state of the art sub-micron geometry probing.

The SP-150 Inline Micropositioner is available with a pivot assembly which allows probe tip holders to be quickly positioned in the Z axis, prior to using the fine Z positioning movement for final touchdown.

Consult of exact more products information,kindly Contact SE TECHNOLOGIES CORP.
