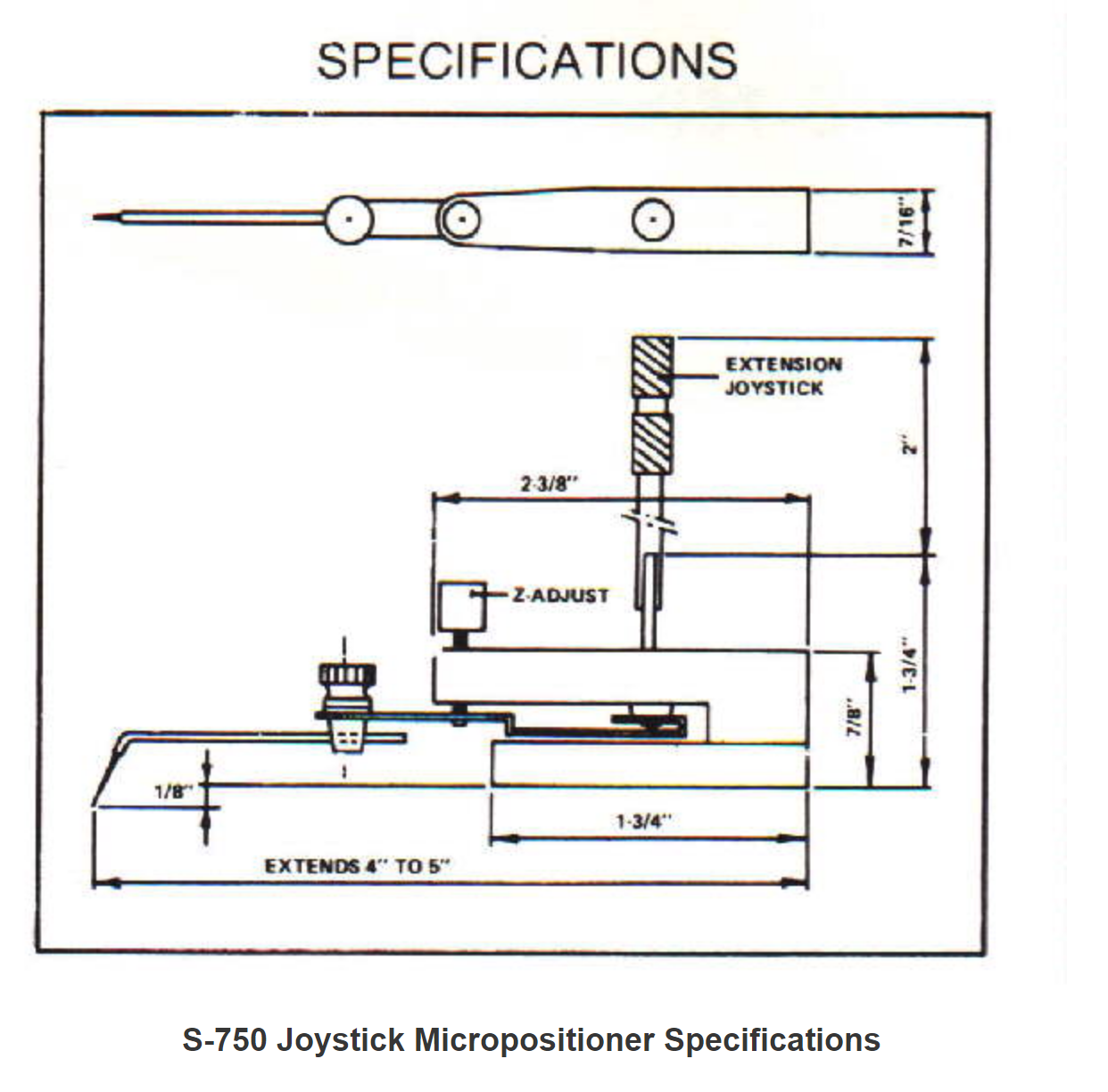

The S-750 Joystick Micropositioner

The S-750 Joystick Micropositioner was developed specifically for contacting larger area structures (pads).

Features

■ Its small size and simple design make it easy to place multiple probes down on one device when platen space is limited.

■ A large X-Y scanning area is augmented by the adjustable "Z" movement of the probe.

■ The spring probe clamp is electrically isolated from the positioner body, and is connected to an 18" wire termination

   with   a male pin jack connector installed.

■ A joystick extension (S-750-1) can be supplied for greater accuracy of motion

■ The Signatone S-750 Joystick Micropositioner features a 9:1 motion ratio and a scan area of 0.10" x 0.180"

■ The extension joystick slips over the top of the smaller standard joystick, and a single extension joystick can

   accommodate any number of positioners.

■ Available with or without the removable extension rod

■ The S-750 Joystick Micropositioner is capable of rapidly establishing contact with probing targets as small as 1 mil.
